Pressure Transducers & Transmitters
Continuous Level Measurement
PTX Submersible Sensor with narrow body
- Fully submersible
- 4-20 mA Output
- +/- 0.1% Repeatability
- Ideal for Boreholes.
- Screw fix Type Available
- 17 mm diameter
- Titanium body
PTX General Purpose 2 wire loop powered
- IP68
- 4-20 mA Output
- +/- 0.2% Repeatability
- Ideal for Boreholes.
- Screw in version
- 25 mm diameter
- stainless steel body
PTX sensor General Purpose
- Fully Submersible
- 4-20 mA Output
- +/- 0.2% Repeatability
- Ideal for Boreholes.
- Screw in version
- 25 mm diameter
- stainless steel body
PCDR Millivolt version
- Pressure Transducer
- Fully Submersible
- 0-100mV Output
- Screw in or Drop in Types
- +/- 0.15% Repeatability
- titanium body
Gallery

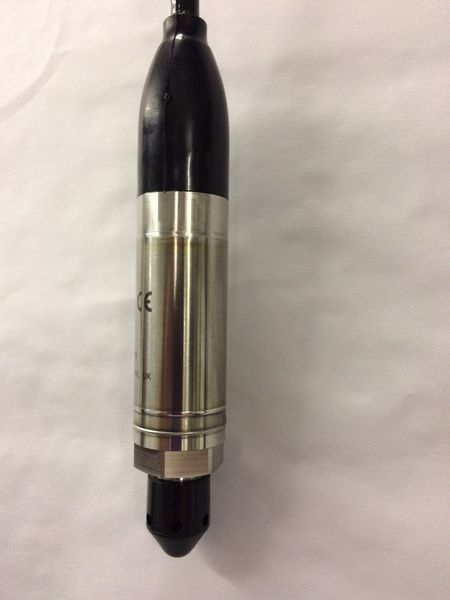

PTX Borehole type
PDCR millivolt type
PTX 2 wire general purpose

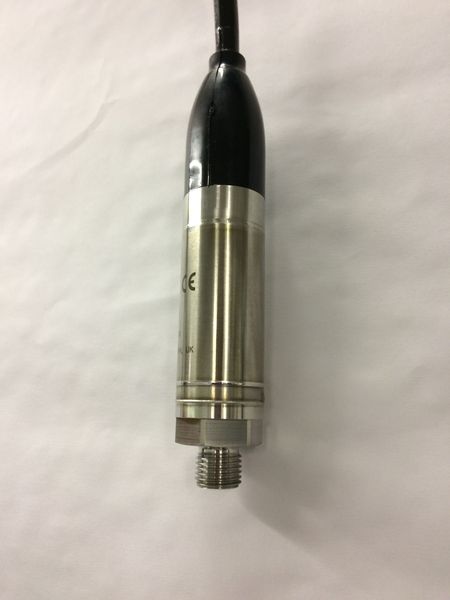

PTX screw in general purpose
Downloads
Specs
Connection Diagrams
-
Wiring diagram for pressure transmitters type PTX1830, PTX530 and type PTX 510 used with Flexilevel 2 level indicator/controller
-
Wiring diagram for intrinsically safe pressure transmitters type PTX530 ,PTX510 and PTX1830 used with type PS2
-
Wiring diagram for intrinsically safe pressure transmitters type PTX530/IS,PTX510/IS and PTX1830 /IS used with type PS2
-
Wiring diagram for Intrinsically Safe pressure transmitters type PTX1830/IS, PTX530/IS and type PTX510/IS used with Flexilevel 2 level indicator/controller
